Products show
AT 1 S low pressure in the trap
Product Name:
AT 1 S low pressure in the trap
Description:
AT-1A 低压用疏水阀

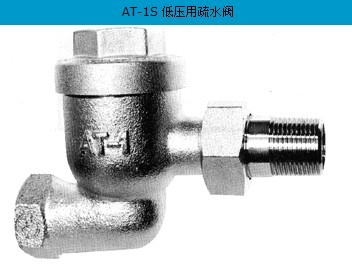

AT-1S 低压用疏水阀


样式
适用压力 100kPa(1k)以下
接口 入口侧:JIS 螺纹  出口侧:JIS 螺纹
流体温度 120℃以下
材质 本体(CAC406)、阀体/阀座(c3604)
本体耐压试验 水压:200kpa(2k)

构造图

AT-1A型   AT-1S型
AT-1A型尺寸表    (mm)
口径 d A B C D 质量(kg)
15 1/2 80 35 46 52 0.55
20 3/4 87 41 52.5 57 0.72
25 1 105 52 61.5 57 1.32
32 11/4 120 65 73 77.5 2.02

AT-1S型尺寸表    (mm)
口径 d A B C D E 质量(kg)
15 1/2 80 28 48 52 43 0.66
20 3/4 87 34 52.5 57 48 0.94
25 1 105 40 64.5 57 60 1.56
32 11/4 120 57 73 77.5 67 2.57

AT-4A 疏水阀


AT-4S 疏水阀


样式
适用压力 0.35Pa(3.5k)以下
接口 入口:外 螺纹
出口:内 螺纹
流体温度 150℃以下
材质 本体(CAC406)、阀体/阀座(SUS)
本体耐压试验 水压:0.7kpa(7k)

构造图



AT-4A型   AT-4S型
AT-4A型尺寸表    (mm)
口径 d A B C 质量(kg)
15 1/2 80 35 49 0.53
20 3/4 87 41 47 0.57

AT-4S型尺寸表    (mm)
口径 d A B C E 质量(kg)
15 1/2 80 28 49 43 0.60
20 3/4 87 34 47 48 0.67
