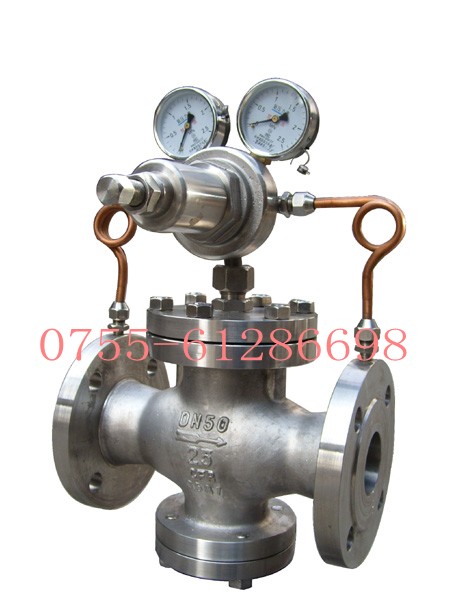

Gas pressure reducing valve
Product Name:
Gas pressure reducing valve
Description:

YK43F型气体减压阀结构特点和用处

    本系列减压阀属于先导活塞式减压阀。由主阀和导阀两部分组成。主阀主要由阀座、主阀盘、活塞、弹簧等零件组成。导阀主要由阀座、阀瓣、膜片、弹簧、调节弹簧等零件组成。通过调节调节弹簧压力设定出口压力、利用膜片传感出口压力变化,通过导阀启闭驱动活塞调节主阀节流部位过流面积的大小,实现减压稳压功能。
    本产品主要用于气体管路,如空气、氮气、氧气、氢气、液化气、天然气等气体。


YK43F型气体减压阀主要技术参数和性能指标
公称压力(Mpa) 1.6 2.5 4.0 6.4 10.0 16.0
壳体试验压力(Mpa)* 2.4 3.75 6.0 9.6 15.0 24
密封试验压力(Mpa) 1.6 2.5 4.0 6.4 10.0 16.0
最高进口压力(Mpa) 1.6 2.5 4.0 6.4 10.0 16.0
出口压力范围(Mpa) 0.1-1.0 0.1-1.6 0.1-2.5 0.5-3.5 0.5-3.5 0.5-4.5
压力特性偏差(Mpa)△P2P GB12246-1989
流量特性偏差(Mpa)P2G GB12246-1989
最小压差(Mpa) 0.15 0.15 0.2 0.4 0.8 1.0
渗漏量 X/F(聚四氟乙稀/橡胶):O Y(硬密封):GB12245-1989
*:壳体试验不包括膜片、顶盖
YK43F型气体减压阀主要零件材料
零件名称 零件材料
阀体 阀盖 底盖 WCB/FCB*
阀座 阀盘 2Cr13/304*
缸套 2Cr13/25(镀硬铬)/304*
活塞 2Cr13/铜合金/铜合金*
活塞环 合金铸铁/对位聚苯*
导阀座 导阀杆 2Cr13/304*
膜片 1Cr18Ni9Ti
主阀 导阀弹簧 50CrVA
调节弹簧 60Si2Mn
密封垫(X/F型号) 橡胶/聚四氟乙稀
导阀体 导阀盖 25/304*
*:用于氧气介质时的材料
YK43F型气体减压阀流量系数(Cv)
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 500
Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250 400 570 780 1020 1500
YK43F型气体减压阀外形尺寸(PN1.6-4.0                                                                 单位:mm
公称通径DN 外 形 尺 寸
L H Hl
1.6/2.5MPa 4.0MPa
15 160 180 290 90
20 160 180 300 98
25 180 200 300 110
32 200 220 300 110
40 220 240 320 125
50 250 270 320 125
65 280 300 325 130
80 310 330 365 160
100 350 380 365 170
125 400 450 475 200
150 450 500 475 210
200 500 550 515 240
250 650 560 290
300 800 705 335
350 850 745 375
400 900 780 405
450 900 730 455
500 950 835 465
YK43F型气体减压阀外形尺寸(PN6.4-16.0)                                                              单位:mm
公称通径DN 外 形 尺 寸
L H Hl
6.4MPa 10.0/16.0MPa
15 180 180 300 100
20 180 200 310 105
25 200 220 31 120
32 220 230 310 120
40 240 240 335 135
50 270 300 335 135
65 300 340 340 140
80 330 360 380 170
100 380 380 185
125 450 490 215
150 500 490 225
200 550 535 260
250 650 580 310
300 800 725 355
350 850 765 395
400 900 800 435
500 950   855 495
