Products show

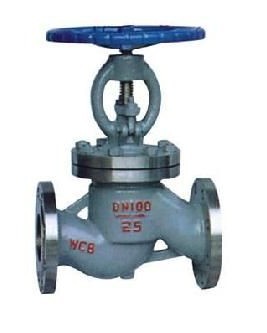

J41H flange steel straight-through valve
Product Name:
J41H flange steel straight-through valve
Description:

J41H法兰连接钢制截止阀(国标)产品引用标准



设计与制造:GB12235
结构长度:GB12221
压力温度等级:GB9131 JB/T74 HG20604
连接法兰:JB/T79 GB9113 HG20593-20635
试验与检验:GB13927 JB/T9092

J41H法兰连接钢制截止阀(国标)
产品用途

法兰连接的截止阀适用于公称压力PN1.6~16.0Mpa,工作温度-29~550℃的石油、化工、制药、化肥、电力行业等各种

工况的管道上,切断或接通介质。适用介质为:水、油品、蒸汽、酸性介质等。操作方式有:手动、齿轮传动、电动、气动等。

法兰连接钢制截止阀产品结构特点

1.产品按国家标准GB12235,结构合理,密封可靠,性能优良、造形美观。
2.阀瓣、阀座的密封面采用司太立(stellite)钴基硬质合金堆焊而成,耐磨、3.阀杆经调质和表面氮化处理,有良好的搞

腐蚀性和抗擦伤性。
4.可采用各种配管法兰标准及法兰密封面型式,满足各种工程需要及用户要求。
5.阀体材料品种齐全,填料、垫片根据实际工况或用户要求合理选配,能适用于各种压力、温度及介质工况。
6.倒密封采用螺纹连接密封座或本体堆焊奥氏体不锈钢而成,倒密封可靠,填料更换和维修可在不停机情况下进行,方便快捷

不影响系统运行。

J41H法兰连接钢制截止阀(国标)主要零件的材料说明



 阀 体

 WCB

 ZG1Cr18Ni12Mo2Ti

 ZGCr5Mo

 ZG1Cr18Ni9Ti

 阀 盖

 WCB

 ZG1Cr18Ni12Mo2Ti

 ZGCr5Mo

 ZG1Cr18Ni9Ti

 支 架

 WCB

 ZG1Cr18Ni12Mo2Ti

 ZGCr5Mo

 ZG1Cr18Ni9Ti

 阀 瓣

 2Cr13

 316

 Cr5Mo

 304

 阀 杆

 2Cr13

 316

 25Cr2MoV

 304

 阀 座

 25

 316

 304

 304

 密封环

 304、增强柔性石墨

 填 料

 增强柔性石墨

 阀杆螺母

 ZCuA110Fe3
